Three-dimensional hidden hinge
Model SB is suitable for wooden doors, steel doors, double doors and other flat doors. It has an opening Angle of 180° and supports three-dimensional adjustment (up and down, front and back, left and right).
The material is 304 stainless steel, with a load-bearing capacity of 150kg per 2 pieces. It is suitable for doors with a thickness of ≥40mm and a width/height of ≥900mm.

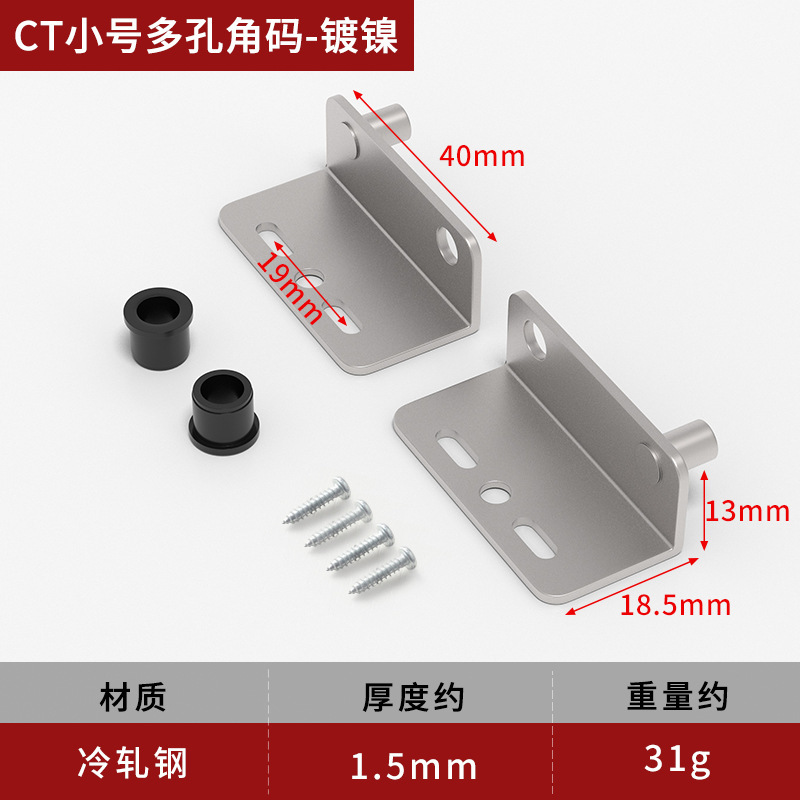

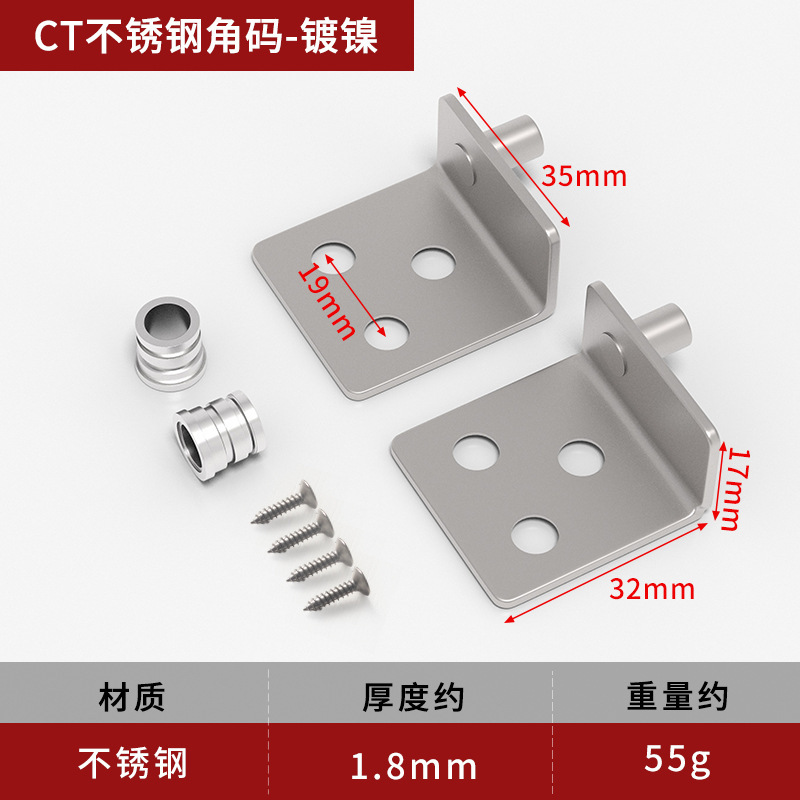

Large corner concealed hinge
Designed specifically for electrical cabinet doors, it can achieve an opening Angle greater than 90°. The structure is simple, made of one-piece formed plates, with high strength, and is suitable for concealed installation requirements.
Hidden hinge (Hafele Metallamat A/SM 92°)
Suitable for blind Angle applications, with an opening Angle of 92°, three-dimensional adjustable. The material is steel hinge cup + zinc alloy hinge arm, and the surface is nickel-plated 46.
Invisible hinges (PINET INDUSTRIE 70-1-3648)
Made of stainless steel and galvanized steel, with an opening Angle of 125° (when the door thickness is ≤10mm), suitable for nested or surface-mounted doors.
Concealed form welded hinges
Made of zinc alloy, the door panel rotates at an Angle of approximately 120°, suitable for electrical cabinet doors. It features strong waterproof, rust-proof and anti-theft properties
